Technical specifications
Measures and Content
- Total Display Area
1.5 m²
- Temperature Range
-22 to +10 °C
- Climate Class
3
- Gross / Net Weight
210 / 166 kg
- Gross / Net Volume
995 / 613 l
Design and Material
- Feet / Legs
4 adjustable feet
- Exterior Finish
Anthracite RAL7016
- Interior Finish
White
- Interior Light
LED
- Lock
No
- Lid Number & Type
2 tempered glass sliding lids
- Divider System
- Number of dividers
2 pcs
Cooling and Functions
- Type of Controller
Electronic
- Type of Cooling
Static
- Type of Defrost
Automatic, hot gas
- Refrigerant
R290
- Refrigerant Charge
113 g
- Thermometer
Power and Consumption
- Energy Class
D
- EPREL No
1941383
- Max Ambient
30°C 55% RH
- Energy Consumption
9.64 kWh/24h
- Annual Energy Consumption
3518 kWh/year
- Power
13 Amp
- Input Power
520 W
- Voltage / Frequency
220-240/50-60 V/Hz
- Noise Level
52 dB(A)
Dimensions
- Internal Dimension (WxDxH)
1798 x 820 x 880 mm
- External Dimension (WxDxH)
1983 x 980 x 970 mm
- Packed Dimension (WxDxH)
2060 x 1066 x 1028 mm
- 40ft Container Load
22 pcs
- GTIN / EAN
5708181735098
- Product Group – Delivery services
Group 3

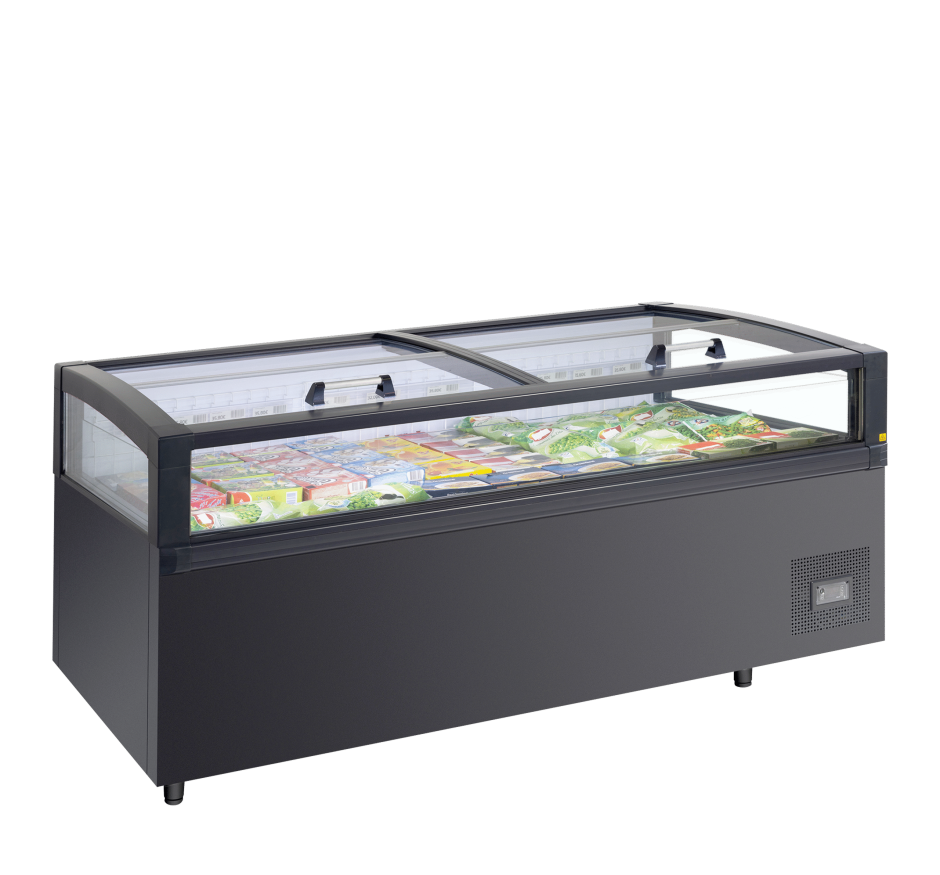

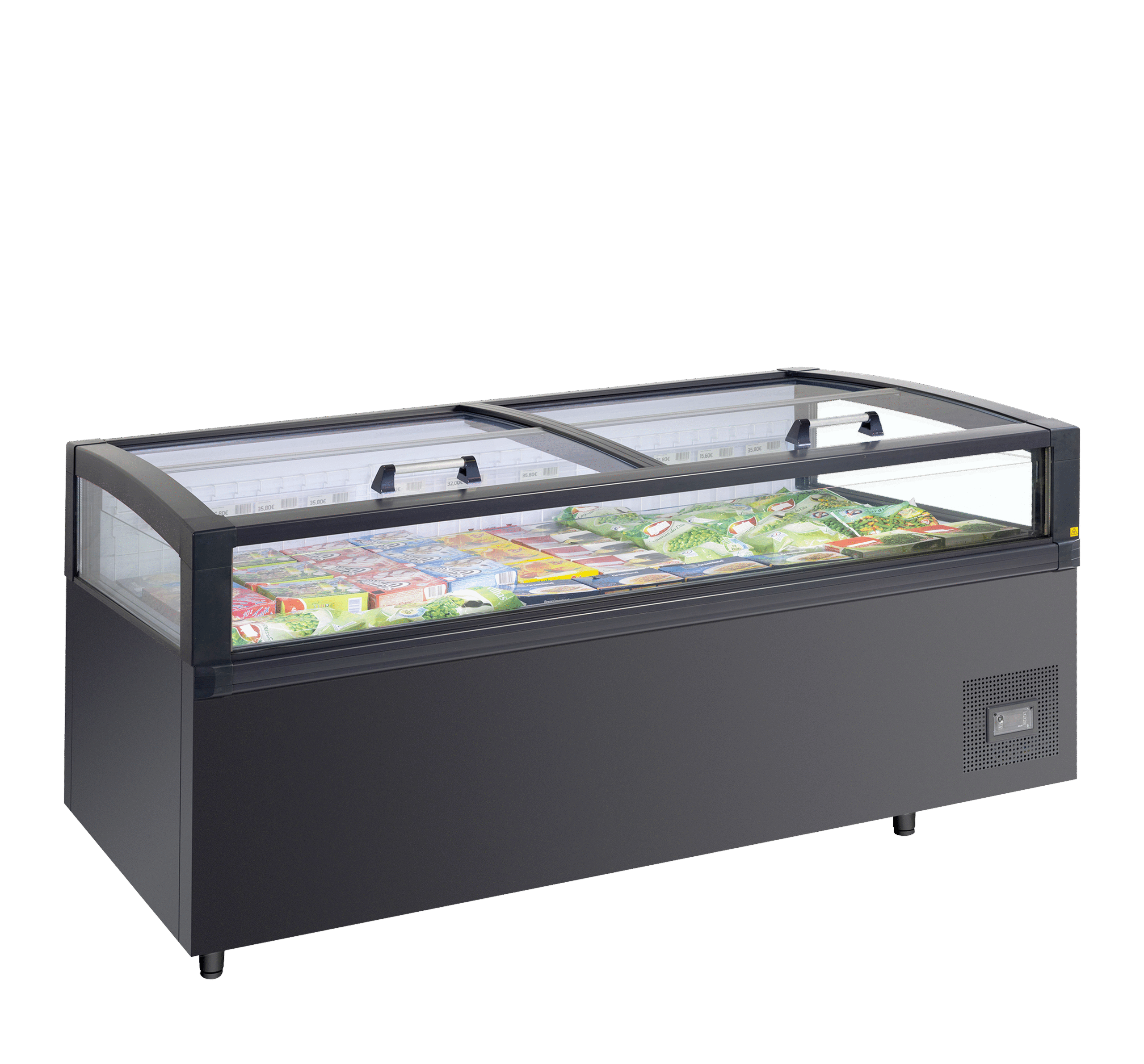

DescriptionSuper market display freezer headcase

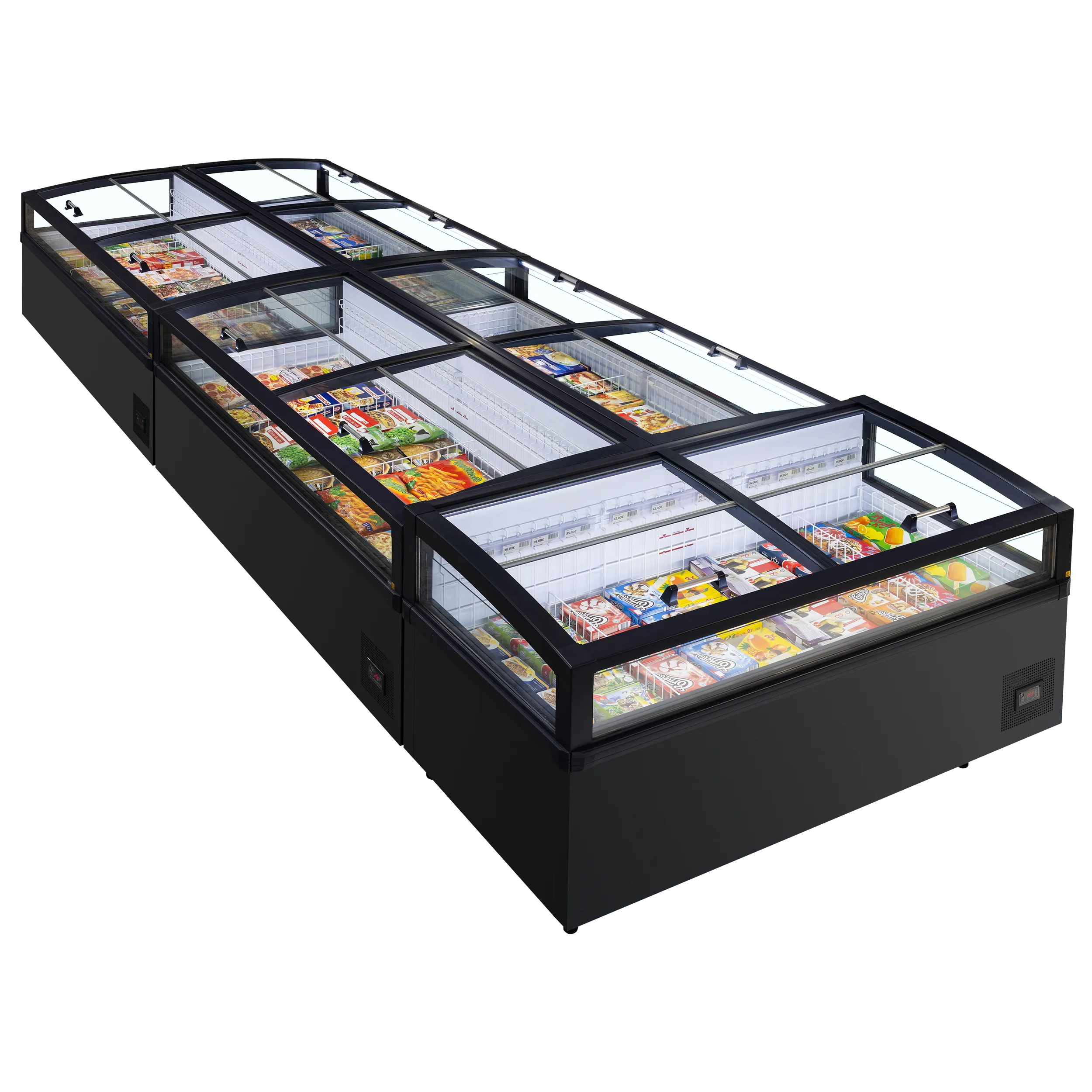

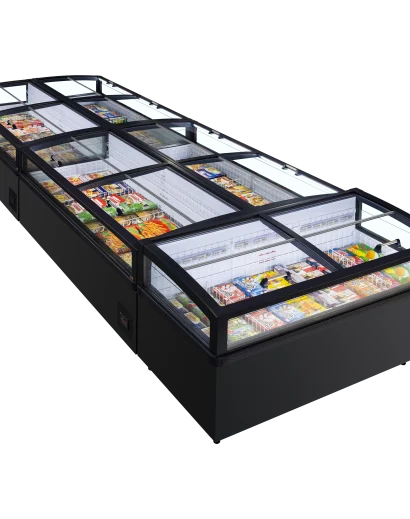

Crafted for the design of eye-catching island displays, the VIEW HC headcase perfectly complements the VIEW 250 CF VS supermarket chiller/freezer. This dynamic appliance offers outstanding adaptability, functioning as both a chiller or freezer within a single unit. Swift transitioning between cooling and freezing functions is effortlessly accomplished through a simple temperature adjustment on the display controller. This flexibility is ideal for retailers needing to alter their product offerings in line with seasonal variations. Further enhancing its impressive features, the VIEW HC unit comes equipped with a variable speed compressor and triple glazed glass on its sides and front. This thoughtful design lends itself to increased energy efficiency—an essential consideration in today’s regulated industry.
