| Warranty | 1 Year Parts Only |
|---|---|
| Extra Service Category | POA |
| Manufacturer | Diamond |
| Width (mm) | 2430 |
| Depth (mm) | 3560 |
| Height (mm) | 2430 |
| Dimensions (mm) | W2430 x D3560 x H2430 |
| Internal Dimensions (mm) | W2230 x D2030 x H2230 |
| Colour | Stainless Steel |

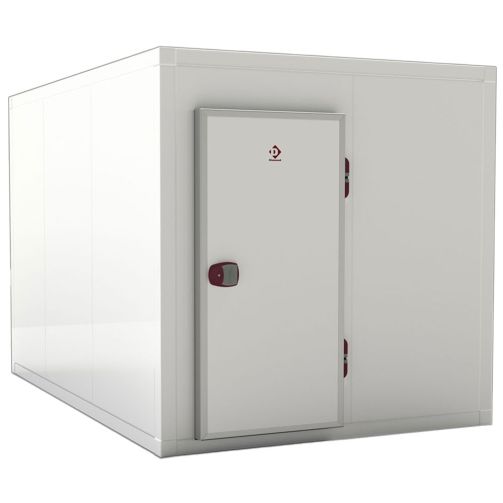

Diamond C1710/XBF-COMBI Combi Cold Room Iso 100 Int. Dim. 2230 X 2030 & 2230 X 1230 Xh 2230 Mm (10,09 + 6,12 M³)
£13,356.00
- Fridge zone (interchangeable also in freezer) : Internal dimensions 2230 x 2030 xh 2230 mm (Internal volume 10,09 m³).
- Freezer area (also interchangeable with fridge): Internal dimensions 1230 xh 2230 mm (Internal volume 6,12 m³)
- 2 doors with a usable passage of 900 x 1900 mm (external door can be positioned on all 3 sides)
- Door seals equipped with a peripheral heating cord (for negative T°)
- 2 vacuum valves (for negative temperature).
- Specific chamber with 2 zones for negative (or positive) temperature, thickness of walls, floor and ceiling of 100 mm, modulation with panels of width 200 to 1200 mm (200+200+200 …).
- Panels made of white lacquered galvanized steel sheet “non-toxic and anti-scratch.
- Insulation in high density injected polyurethane (43 Kg/m3), ecological (without CFC).
- Locking of the panels by incorporated “eccentric” hooks.
- Reinforced floor made of 12 mm multiplex wood, covered with a phenolic anti-slip “honeycomb” resin, supporting a load of 4000 kg/m² (140 Kg point load).
- 90° peripheral angles with specific caps at the ends, also insulated with polyurethane (50 Kg/m3) to avoid any possible thermal bridge.
- Separation panel with internal door, fixed on “T” shaped corners, also insulated with polyurethane (50 Kg/m3) to avoid any possible thermal bridge.
- The corners and edges of the floor, ceiling and walls are all rounded (R15 mm) and also insulated with polyurethane (50 Kg/m3).
- Swinging door thickness 100 mm also insulated with polyurethane (43 Kg/m3), with right hinges (on request, possibility of left hinges: CGC/BF), very robust, reinforced with a peripheral frame in anodised aluminum, provided with a magnetic seal in EPDM “pressure” (easy replacement, without tools), adjustable rising hinges and with stop at 100°, external handle with key lock, internal closing with safety device.
- Equipment built in compliance with the normative (CE) in force.
