Technical specifications
Measures and Content
- Temperature Range
-24 to -18 °C
- Climate Class
3
- Gross / Net Weight
190 / 135 kg
- Gross / Net Volume
870 / 630 l
- Total Display Area
1.42 m²
Design and Material
- Feet / Legs
4 adjustable legs
- Exterior Finish
Anthracite RAL7016
- Interior Finish
White
- Interior Light
LED
- Lid Number & Type
2 curved sliding temp. glass lids
- Basket Number & Type
0
- Number of dividers
2 pcs
Cooling and Functions
- Type of Controller
Electronic
- Type of Cooling
Static
- Type of Defrost
Automatic
- Refrigerant
R290
- Refrigerant Charge
2 x 60 g
- Thermometer
Power and Consumption
- Energy Class
C
- Max Ambient
25°C at 60% RH
- Energy Consumption
7.05 kWh/24h
- Annual Energy Consumption
2573 kWh/year
- Power
13 Amp
- Input Power
662 W
- Voltage / Frequency
220-240/50 V/Hz
- Noise Level
48 dB(A)
Dimensions
- Internal Dimension (WxDxH)
2062 x 774 x 490 mm
- External Dimension (WxDxH)
2220 x 920 x 790 mm
- Packed Dimension (WxDxH)
2310 x 1020 x 850 mm
- 40ft Container Load
16 pcs
- GTIN / EAN
5708181993498
- Product Group – Delivery services
Group 3
Description

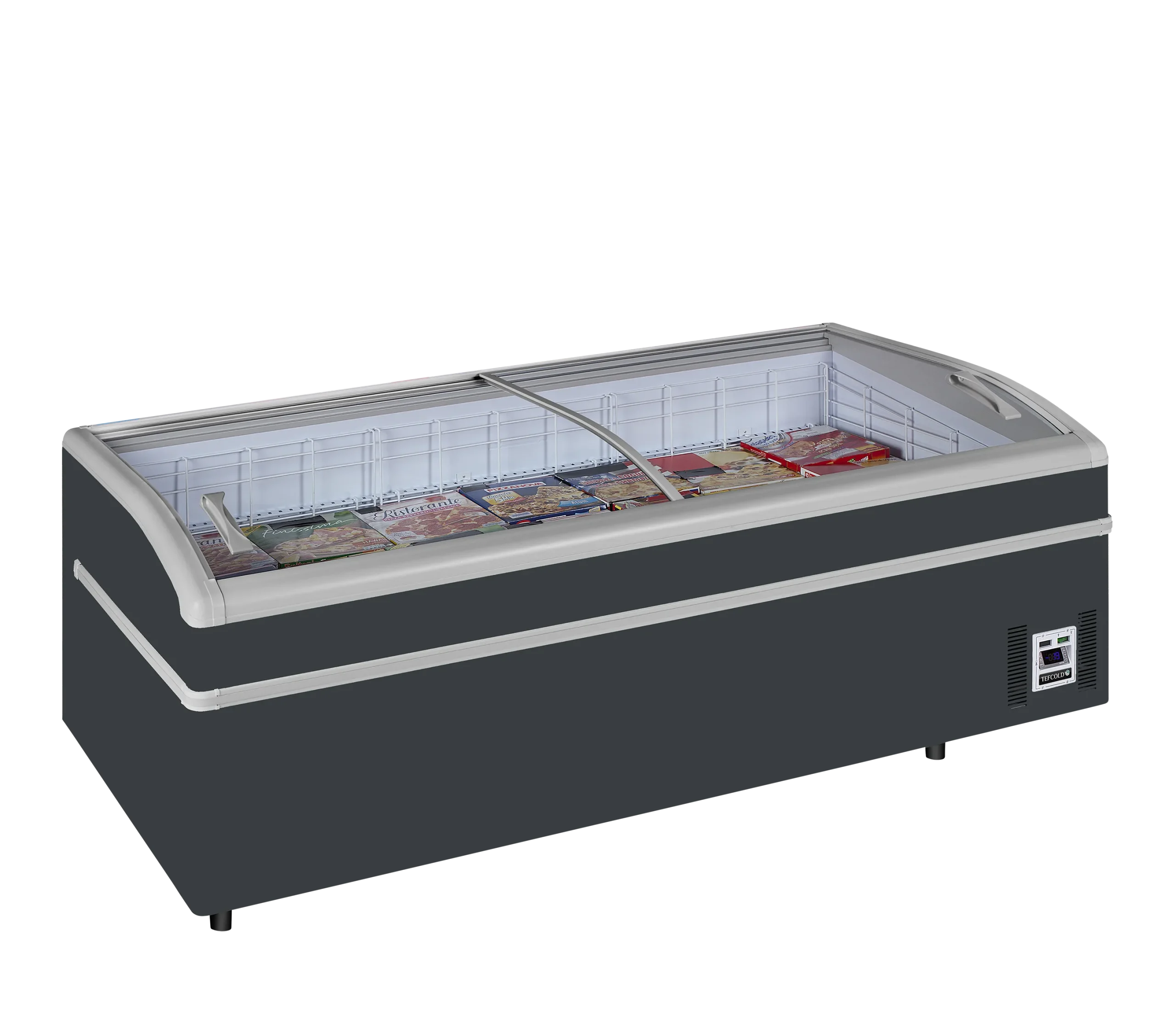

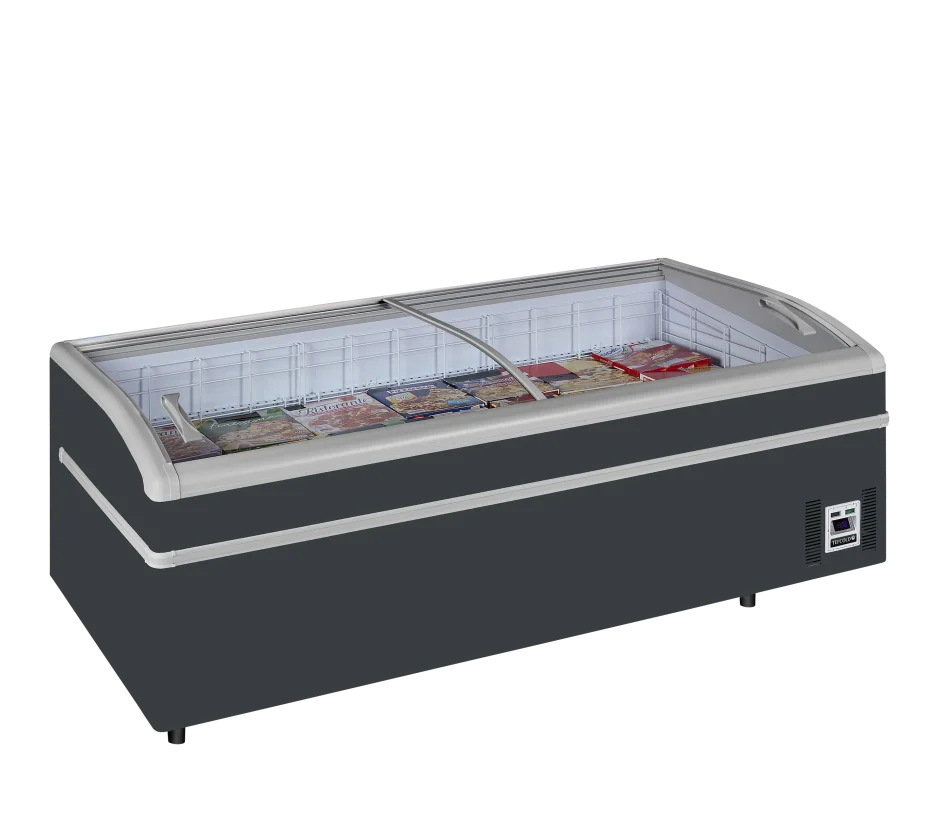

Ideal for supermarkets and convenience stores, the Arcaboa Super range of freezers has large panoramic glass lids to create an excellent display, with LED lighting to illuminate the interior and produce. Units can be arranged into islands with head case units (Super 200HCDE) to go on the ends. Multiplex kits are available to join them together and shelving kits can be added to give extra impulse sales. The cabinet has auto defrost function to reduce maintenance costs and help prevent ice forming inside the cabinet. The cabinet is one of the most efficient freezers on the market with very low energy consumption. Arcaboa are renowned for build quality and reliability. (Also available are a manual defrost version and DPN version which can be switched between chiller and freezer).
