Technical specifications
Measures and Content
- Temperature Range
-18 to -22 °C
- Climate Class
3
- Gross / Net Weight
270 / 240 kg
- Gross / Net Volume
1006 / 702 l
- Total Display Area
1.39 m²
Design and Material
- Feet / Legs
4 adjustable feet
- Exterior Finish
Black RAL9005
- Interior Finish
White RAL9003
- Interior Light
LED
- Door Number & Type
2 hinged glass doors
- Door Reversible
No
- Shelves Number & Type
12 adjustable
- Shelf Color
White
- Shelf Dimensions
551 x 470 mm
- Max load on Shelves
140 kg/m²
Cooling and Functions
- Type of Controller
Electronic
- Type of Cooling

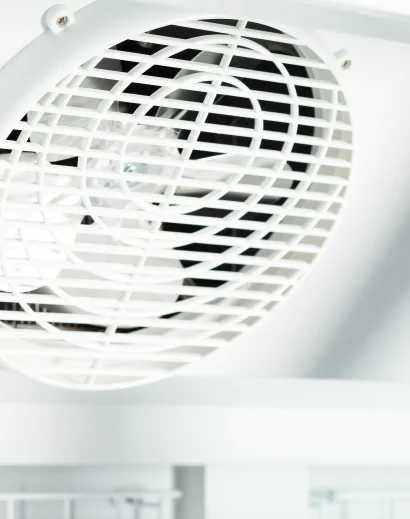

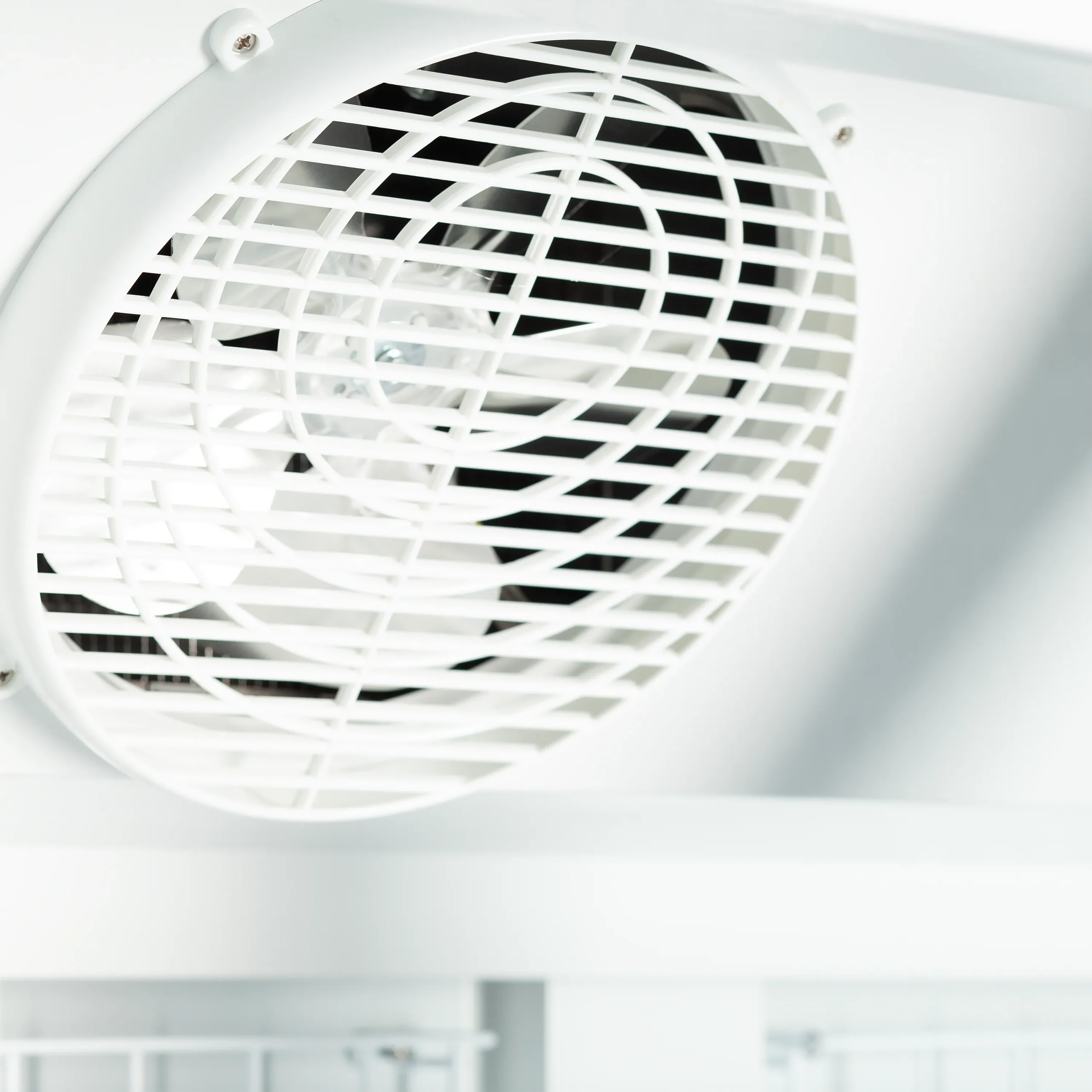

Ventilated
- Type of Defrost
Automatic
- Refrigerant
R290
- Refrigerant Charge
2 x 80 g
- Thermometer
Power and Consumption
- Energy Class
D
- EPREL No
1556603
- Max Ambient
25°C at 60% RH
- Energy Consumption
17.47 kWh/24h
- Annual Energy Consumption
6377 kWh/year
- Power
13 Amp
- Input Power
1205 W
- Voltage / Frequency
220-240/50 V/Hz
- Noise Level
65 dB(A)
Dimensions
- Internal Dimension (WxDxH)
1133 x 580 x 1538 mm
- External Dimension (WxDxH)
1253 x 760 x 2003 mm
- Packed Dimension (WxDxH)
2090 x 780 x 2090 mm
- 40ft Container Load
27 pcs
- GTIN / EAN
5708181753542
- Product Group – Delivery services
Group 3
Description

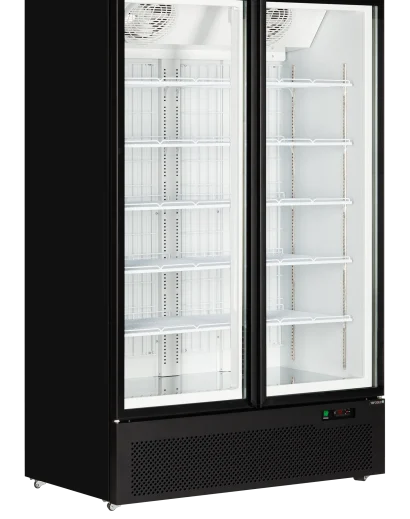

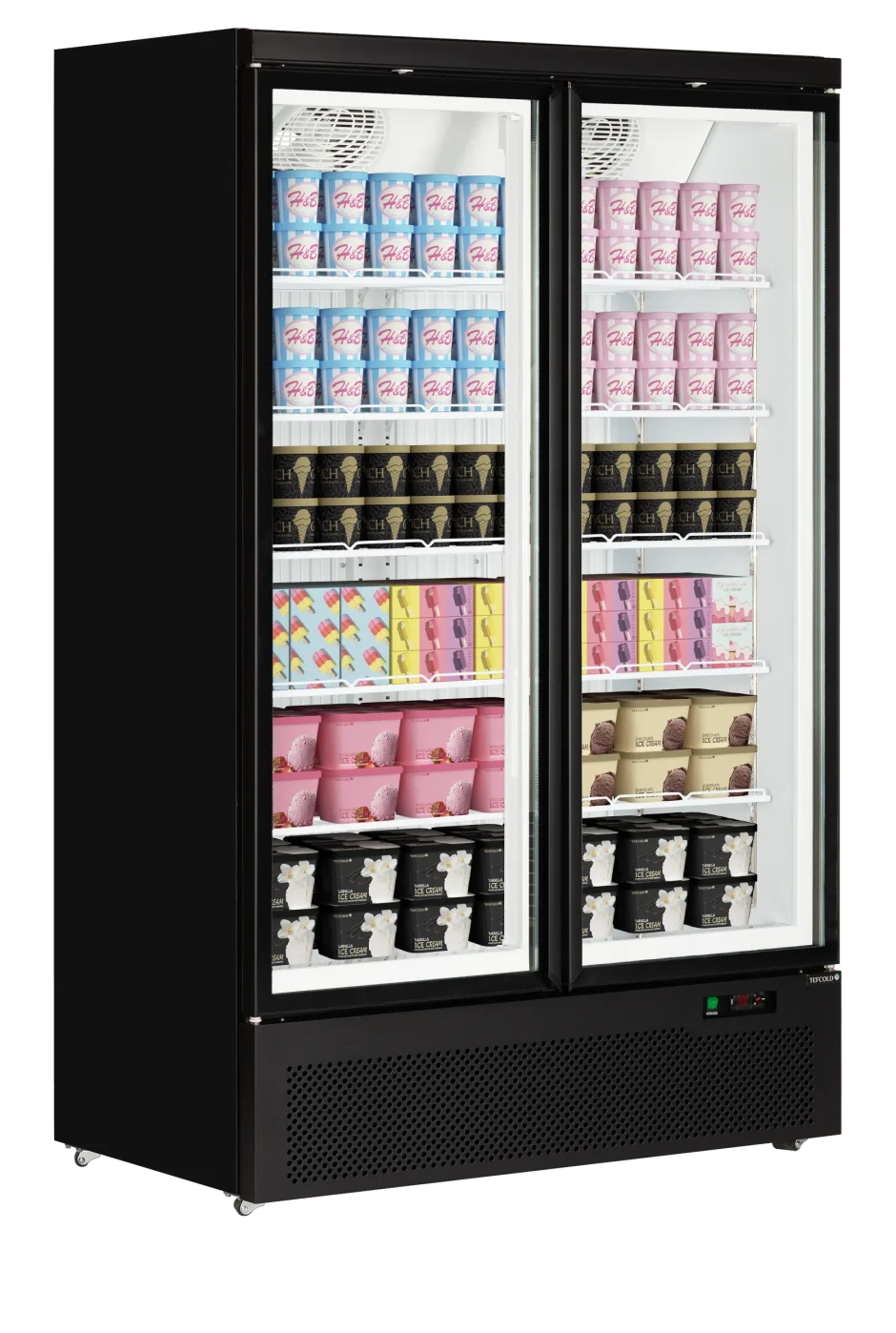

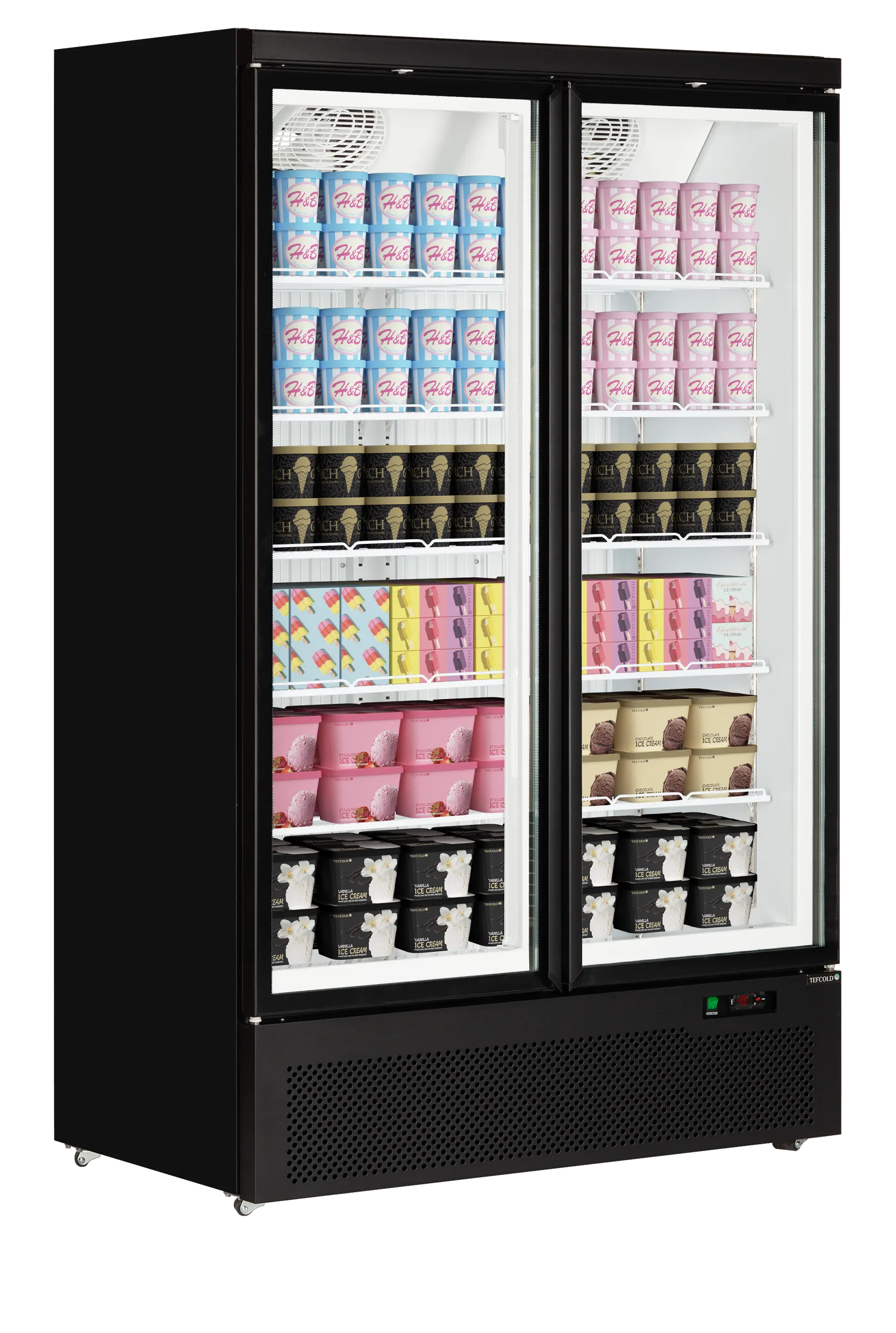

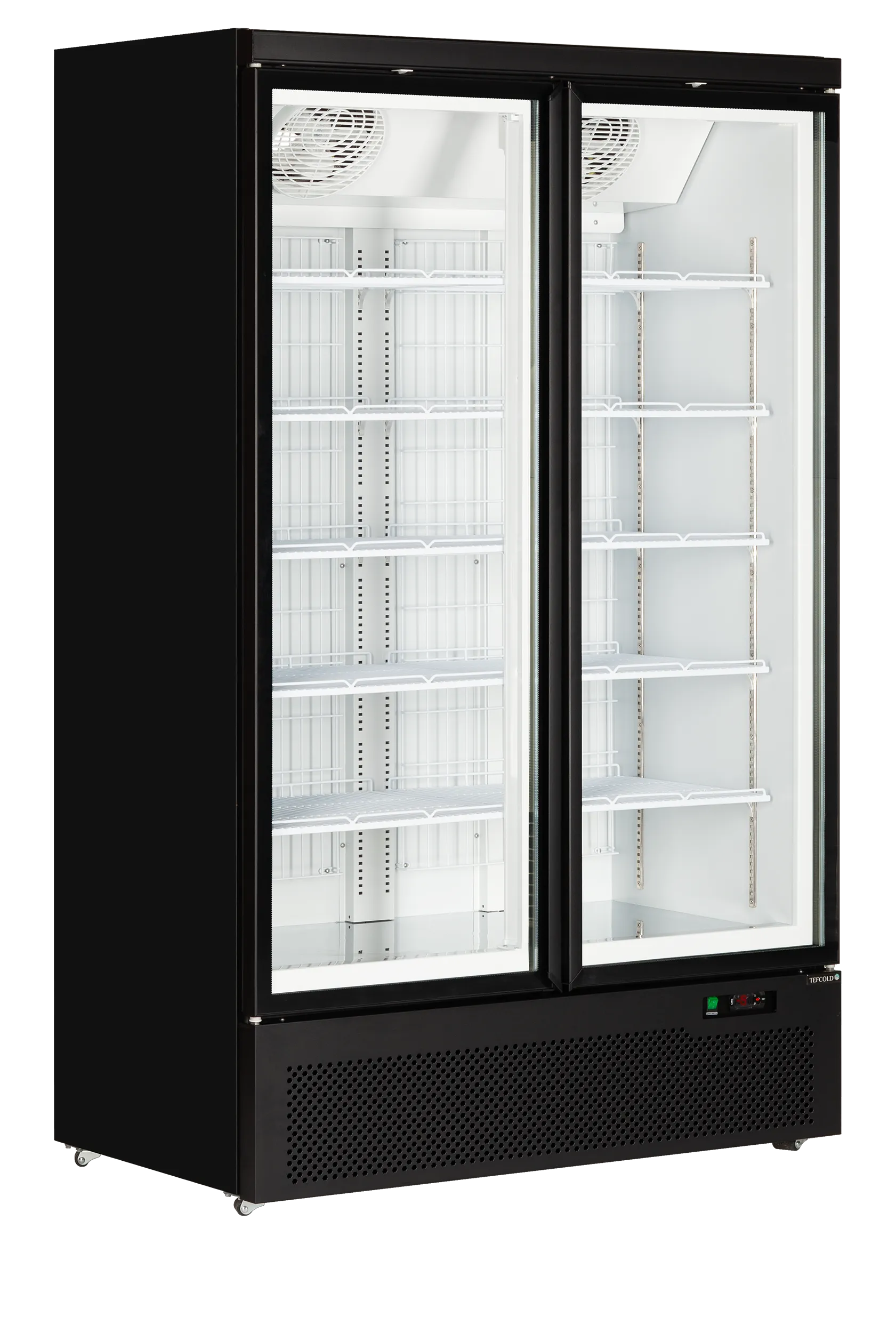

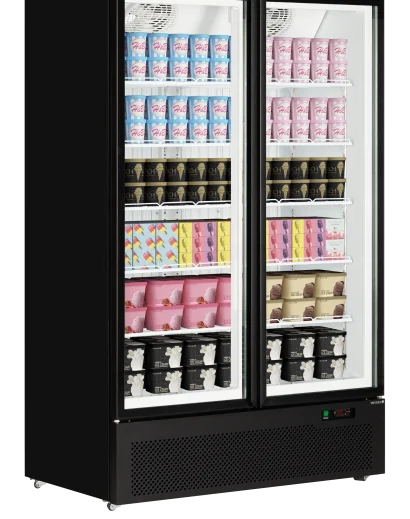

2 door display freezer
The Atom Maxi range of glass door freezers is available in 1 to 3 door options. This variant comes with one more shelf and two screw down feet. Edge to edge “frameless” self-closing glass doors together with excellent storage capacity make it ideal for all types of frozen food display. The canopy-less design makes it a favourite choice for shopfitters for use in convenience stores, delis and butchers where a frozen selection gives customers extra choice. A fully automatic refrigeration system ensures the unit will not ice-up under normal conditions, while vertical LED lighting on the interior help present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce frozen food to your customers. There is also a matching chiller option available and the unit is often used alongside the Galaxy+ multideck.
